Thermoelectric Cooler
ZC2025123006

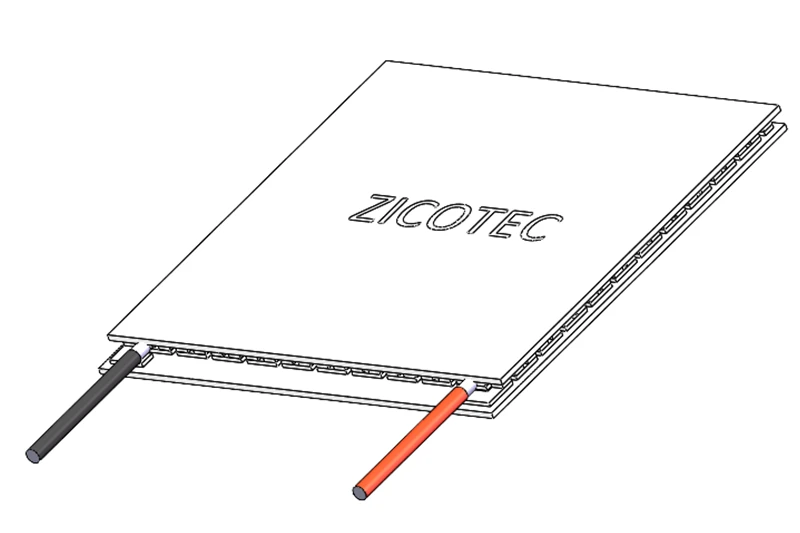

The General Series of Peltier Modules (PMs) is designed for the thermal management industry. The ZC2025123006 Peltier Modules is a high-performance and highly reliable with 242 couple and 16.0Amp module. Constructed from bismuth telluride semiconductor material and thermally conductive Al2O3 substrates.
PRODUCT SPECIFICATIONS
1.Technical Specifications
Specifications |
| |
Hot Side Temperature (°C) | 25 | 50 |
Vmax (Volts) | 29.4 | 34.4 |
Imax (Amps) | 16.0 | 16.0 |
Qmax (Watts) | 264 | 288 |
Delta Tmax (°C) | 72 | 83 |
ACR @ 23°C (Ω) | 1.5±10% | |
2.Performance Curve（25°C）

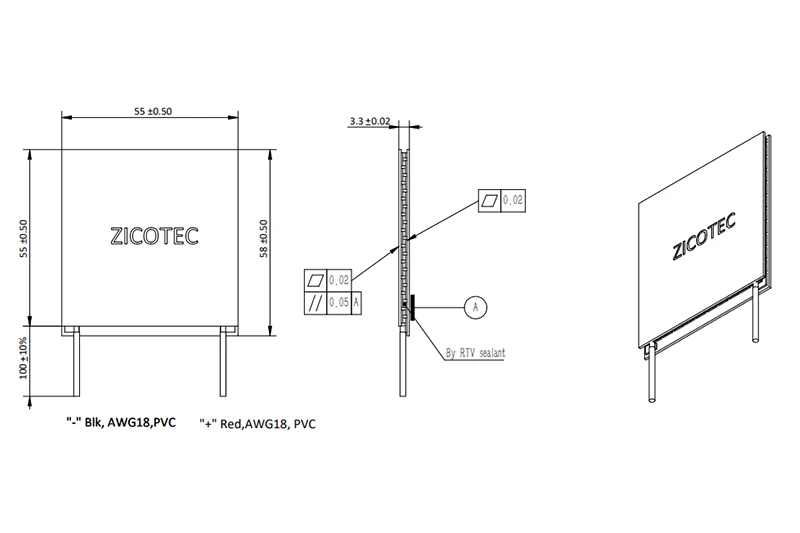

3.Dimension information (unit:mm)
Installation Requirement
- -To achieve maximum performance, ensure adequate heat dissipation on both side of TEC.
- -Ensure sufficient flatness and parallelism on contact surface as required.
- -Ensure the TEC is fastened with evenly balanced radial clamping pressure.
Safety & Warning
- -To ensure good thermal grease performance, there should be no bowing of either surface due to torquing.
- -To prevent bowing, apply less torque if one or both surfaces are less than 3.18 mm thick copper or 6.35 mm thick aluminum.
- -Don’t exceed the Imax or Vmax when operating.
- - Don’t exceed the max operating temperature 80C.
If this specification fits your products, you may download and save this page.tim
